Acorn Sit/Stand Stairlifts

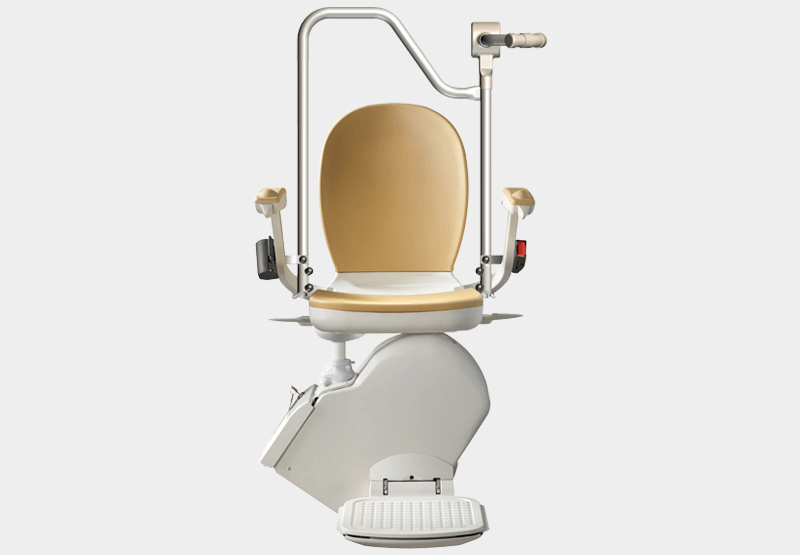

The Acorn Sit/Stand Stairlift

A solution for a variety of mobility requirements

A straight stairlift is the ultimate staircase solution, giving you the full use of the home you love. Blending seamlessly into your home, with a smooth start and stop mechanism, you can glide effortlessly up and down the stairs.

Continually developed, improved and refined over many years, the Acorn 130 is the direct descendant of our very first straight stairlift, the Acorn Superglide.

If you want to know more, contact us and one of our friendly, local surveyors can visit at a time suitable to you.
Get a FREE quote

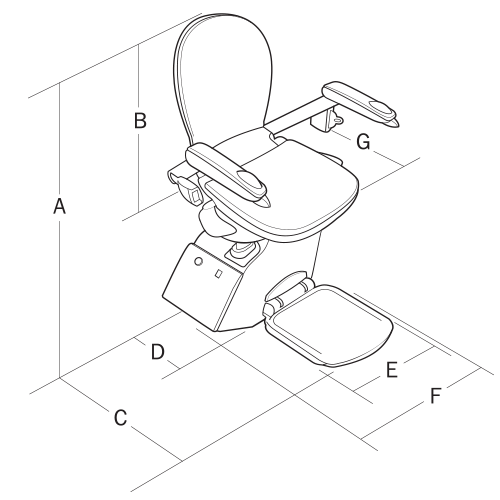

Acorn 130 Stairlift Measurements and Technical Information
Dimensions mm inch
A Overall height 1220 48
B Height of Seat 440 17.25
C Overall depth (from wall) 620 24.5
D Overall depth (when folded) 210 8.25
E Width of footrest 310 12.25
F Overall width 605 23.75
G Depth of seat 435 17

This stairlift is independently tested to comply with:

  • BS EN 81-40:2008 - European safety standard - 'Specification for powered stairlifts'.
  • CE mark - Acorn Stairlift meets the requirements of the applicable European Directive(s).
  • ASME compliant for mechanical and electrical hazards - ASME A18.1 and A17.5.
  • ISO 9386:2-2000 International standard for stairlifts.
Motor output speed 120mm/s | 4.8inches per second - No greater than 0.15 meters per second
Method of drive Rack and pinion
Power supply 24V DC (battery)
Maximum capacity 280lbs/127kg
Track Extruded aluminium
Mains supply 50-60Hz, 100-240V AC

* NOTE: Acorn, in keeping with its policy of continual development, reserves the right to change specification without notice. All measurements are approximate.

Need advice from a familiar and trusted face to millions of TV viewers?

Dr Hilary Jones' checklist to help you make the right choice when looking for a stairlift.

Did you know?

All Acorn Stairlifts are available with a hinged rail option, designed to eliminate any obstruction or trip hazard at the foot of the stairs.
Image of straight hinge demonstration

Have we missed anything?

Contact us today


We have experienced surveyors based all around the UK, so there’ll be no delay in organizing a visit at a time that’s convenient to you.

Book your FREE survey

Alternative Stairlift Models

Acorn 130 Straight Stairlift

The ideal solution for a straight staircase:

  • The secure, retractable seatbelt provides both security and safety.
  • Stairlifts also available for narrow stairs
  • 300lbs maximum load capacity (350lbs HD model)
  • Includes 12-months manufacturer guarantee
Get a FREE quote More information

Acorn 180 Curved Stairlift

One of the most innovative stairlifts in the world:

  • Single stairlift rail that uses an innovative and unique to Acorn FastTrack® system
  • 266lb maximum load capacity
  • Includes 12-months manufacturer guarantee
Get a FREE quote More information

Acorn 130 Outdoor Stairlift

Open up and enjoy your outdoor space:

  • Comes with a weather resistant outdoor cover
  • Outdoor stairlift is fitted to the steps, not the wall
  • 300lbs maximum load capacity (350lbs HD model)
  • Includes 12-months manufacturer guarantee
Get a FREE quote More information

If you’re considering a stairlift, but don’t know if it will be suitable for you and your home, the best way to get all the answers you need is by booking an Acorn home survey.
